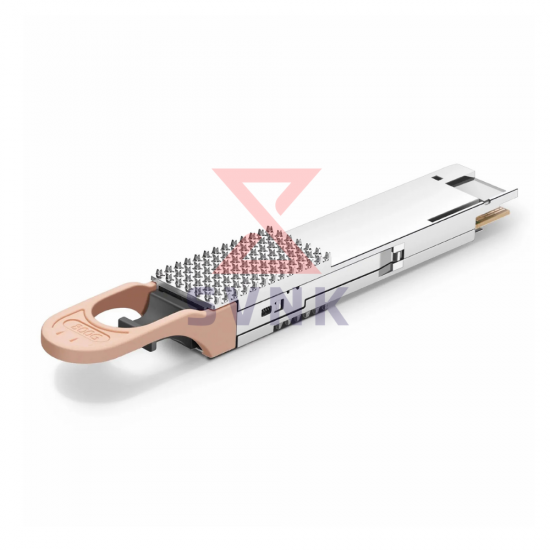

800G SR8 Optical Transceiver – 850nm MPO MMF

SVNK 800GBASE-SR8 QSFP-DD Optical Transceiver – 100 m MMF

The SVNK 800GBASE-SR8 QSFP-DD optical transceiver is a next-generation, ultra-high-speed module engineered for 800 Gigabit Ethernet short-reach applications over multimode fiber (MMF). Operating at a nominal wavelength of 850 nm, this transceiver is designed to support ultra-dense data center, cloud, AI, and HPC interconnects requiring massive bandwidth, low latency, and high reliability.

The module integrates eight independent high-speed optical lanes, each operating at 106.25 Gb/s using PAM4 modulation, delivering an aggregate throughput of up to 800G. It utilizes an advanced VCSEL laser array and PIN photodiode receiver array, enabling stable, low-power, and high-signal-integrity transmission over OM4 and OM5 multimode fiber.

Compliant with QSFP-DD MSA, CMIS, and IEEE 802.3 SR8 architectures, the SVNK 800GBASE-SR8 ensures seamless interoperability with next-generation 800G switches, routers, and GPU/AI fabrics. The module features an MPO-16 high-density optical interface, making it ideal for spine-leaf architectures and large-scale data center deployments.

With hot-pluggable capability, integrated digital diagnostics monitoring (DDM), and optimized power efficiency, this transceiver delivers a future-proof solution for high-performance short-reach 800G optical networks.

Key Features

• Hot-pluggable QSFP-DD form factor
• Supports 800 Gigabit Ethernet (800GbE)
• Aggregate data rate up to 850 Gb/s
• 8×106.25G PAM4 optical lanes
• 8×53.125Gbaud PAM4 architecture
• 850 nm VCSEL laser array & PIN receiver array
• Maximum reach: 70 m on OM4, 100 m on OM5 MMF
• MPO-16 optical receptacle
• Power consumption < 13 W
• Single 3.3 V power supply
• Built-in Digital Diagnostics Monitoring (DDM/DOM)
• Commercial operating temperature: 0°C to 70°C
• High-density 76-pin electrical interface
• CMIS compliant management interface
• RoHS compliant (lead-free)
