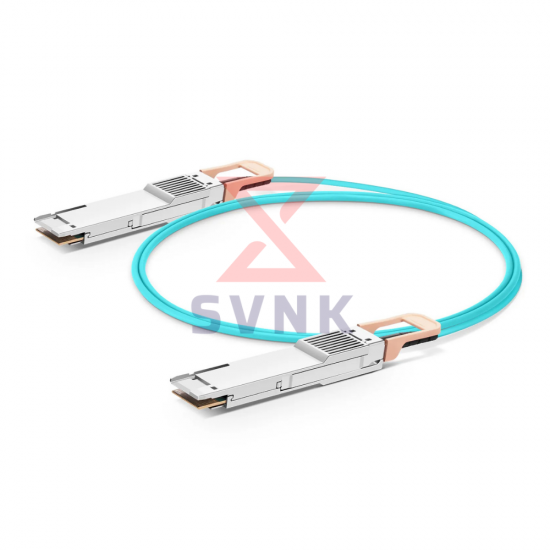

400G Active Optical Cable (AOC) QSFP56-DD to QSFP56-DD OM3 Cable

SVNK 400G QSFP56-DD Active Optical Cable (AOC) – SR4, MMF

The SVNK 400G QSFP56-DD Active Optical Cable (AOC) is a high-performance parallel optical interconnect engineered for 400 Gigabit Ethernet, cloud, and hyperscale data center environments. It supports the transmission of 4 × 100G PAM4 optical channels over multimode fiber, delivering an aggregate bandwidth of up to 400 Gb/s (425 Gb/s line rate).

Built on advanced VCSEL-based optical technology, the AOC operates at a nominal wavelength of 850 nm and enables reliable short-reach connectivity of up to 70 m over OM3 and 100 m over OM4/OM5 multimode fiber. Compared with copper interconnects, SVNK 400G QSFP56-DD AOCs provide longer reach, EMI immunity, lighter weight, improved airflow, and simplified cable management, making them ideal for dense 400G switching architectures.

The cable integrates factory-terminated QSFP56-DD modules on both ends, each supporting high-speed 100G PAM4 channels with built-in active electronics and DSP retiming to ensure excellent signal integrity, ultra-low bit-error rates, and stable performance in hyperscale and HPC deployments.

Fully compliant with QSFP56-DD / QSFP-DD MSA, CMIS 4.0, IEEE 802.3cd, and OIF-CEI-04.0, the SVNK 400G QSFP56-DD AOC guarantees broad interoperability with next-generation 400G switches and routers.

Key Features

• Hot-pluggable QSFP56-DD Active Optical Cable assemblies
• Supports 400G parallel optical transmission (SR4 architecture)
• 4 × 100G PAM4 electrical interface
• 4 × 100G PAM4 optical interface
• Per-channel data rate up to 100 Gb/s
• 8-channel 850 nm VCSEL transmitter array
• 8-channel PIN photodiode receiver array
• Aggregate bandwidth up to 425 Gb/s
• Maximum reach: 70 m (OM3) / 100 m (OM4/OM5) MMF
• Maximum power dissipation ≤ 10 W per QSFP56-DD end
• Single 3.3 V power supply
• Commercial operating temperature range
• Built-in Digital Diagnostic Monitoring (DOM/DDM)
• Compliant with QSFP56-DD / QSFP-DD MSA, CMIS 4.0, IEEE 802.3cd, OIF-CEI-04.0
• Compatible with 200GBASE-SR4 and InfiniBand HDR/HDR100
• RoHS compliant (lead-free)
