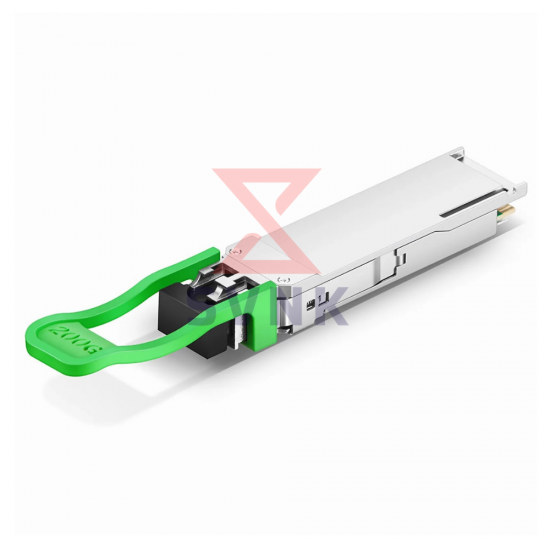

200G QSFP56 FR4 Optical Transceiver – 2km LC SMF

SVNK QSFP-DD 200GBASE-FR4 Optical Transceiver (2 km, SMF)

The SVNK QSFP-DD 200GBASE-FR4 Optical Transceiver is a high-performance optical module engineered for 200 Gigabit Ethernet transmission over single-mode fiber (SMF). Designed for next-generation data center, cloud, and enterprise networks, the module enables high-speed, low-latency connectivity with excellent signal integrity and power efficiency.

The transceiver converts four 53.125 Gb/s electrical lanes into four CWDM optical wavelengths, which are multiplexed into a single optical signal to support an aggregate data rate of 212.5 Gb/s. On the receive side, the incoming optical signal is demultiplexed back into four optical channels and converted into high-speed electrical outputs. This CWDM-based FR4 architecture enables efficient fiber utilization while supporting link distances of up to 2 km over SMF.

SVNK 200G FR4 integrates a built-in PAM4 DSP, uncooled DML-based TOSA, and high-sensitivity PIN ROSA, delivering reliable high-speed transmission with low bit-error rates and excellent thermal stability. The compact, hot-pluggable QSFP-DD form factor allows high port density and seamless deployment in modern switches and routers.

Key Features

• Hot-pluggable QSFP-DD form factor
• Supports 212.5 Gb/s aggregate data rate
• Built-in 200G PAM4 DSP
• Maximum reach up to 2 km over single-mode fiber (SMF)
• 4-channel uncooled DML TOSA
• 4-channel PIN ROSA receiver array
• 4 CWDM wavelength lanes with integrated MUX/DEMUX
• 200GAUI-4 electrical interface
• Duplex LC optical connector
• Low power dissipation < 6 W
• Commercial operating case temperature: 0°C to 70°C
• Single 3.3 V power supply
• Compliant with CMIS 4.0
• I²C management interface
• Built-in Digital Optical Monitoring (DOM/DDM)
• RoHS compliant (lead-free)
